Phylo3D-Trait

Phylo3D-Trait Tutorial

Goal: start from a phylogenetic tree plus observed tip traits, derive stable ancestral-node IDs, add externally reconstructed ancestral traits, and produce an interactive 3D HTML visualization.

The important distinction is between starting files, derived intermediate files, and the final Phylo3D-Trait input:

STARTING FILES
tree.nwk + tip_traits.csv
          |
          |  template-values
          v
DERIVED NODE TEMPLATE
node_values_template.csv
          |
          |  external ASR / ancestral trait calculation
          v
ANCESTRAL TRAITS
ancestral_traits.csv
          |
          |  merge with observed tip traits
          v
FINAL PHYLO3D INPUT
node_values.csv
          |
          |  phylo3d-trait plot
          v
OUTPUT
tree3d.html

Phylo3D-Trait does not reconstruct ancestral states. It generates stable node IDs and visualizes trait values supplied for those nodes.

1. Install

Install the stable release from PyPI:

pip install phylo3d-trait

Verify:

phylo3d-trait --help

Expected subcommands:

plot
template-values

Equivalent module form:

python -m phylo3d_trait.cli --help

Python requirement: 3.10+.

2. Start with two files

At the beginning of an analysis you need:

  1. the phylogenetic tree;
  2. observed trait values for the terminal taxa.

You do not need to know the ancestral clade:<hash> IDs yet, and you should not invent them.

2.1 Phylogenetic tree

Example tree.nwk:

((A:10.0,B:10.0):20.0,(C:15.0,D:15.0):15.0);

Supported formats are Newick and Nexus.

For a dated/ultrametric tree, branch lengths can represent evolutionary time and the Z axis can be interpreted as time before present. If branch lengths are substitutions/site or their meaning is unknown, do not label the Z axis as Ma.

2.2 Observed tip traits

Example tip_traits.csv:

node_id,trait
A,1.5
B,3.0
C,4.5
D,5.0

At this stage the file contains tips only. These may be measured phenotypes, physiological values, morphological measurements, genomic quantities, or other continuous traits.

The tip names must match the tree tip labels exactly.

3. Generate stable IDs for every ancestral node

The tree determines which internal nodes exist. Let Phylo3D-Trait calculate their stable IDs:

phylo3d-trait template-values \
  --tree tree.nwk \
  --output node_values_template.csv

For the toy tree, the generated file contains:

node_id,label,node_type,descendant_count,descendant_tips,trait
A,A,tip,1,A,
B,B,tip,1,B,
C,C,tip,1,C,
D,D,tip,1,D,
clade:17f5f129f4c7,clade:17f5f129f4c7,root,4,A;B;C;D,
clade:b17c8419f544,clade:b17c8419f544,internal,2,A;B,
clade:6a5756530335,clade:6a5756530335,internal,2,C;D,

The human-readable descendant_tips column tells you exactly what each hash represents:

A;B     -> clade:b17c8419f544
C;D     -> clade:6a5756530335
A;B;C;D -> clade:17f5f129f4c7   (root)

How the hash is calculated

For each internal node:

descendant tip names
-> trim whitespace
-> remove duplicates
-> lexicographically sort
-> join with "," and no spaces
-> SHA-256
-> first 12 lowercase hexadecimal characters
-> prefix "clade:"

Exact rule:

clade_id = "clade:" + sha256(
    ",".join(sorted(set(descendant_tips))).encode("utf-8")
).hexdigest()[:12]

Example:

descendant tips: B, A
canonical key:   A,B
SHA-256 prefix:  b17c8419f544
stable node ID:  clade:b17c8419f544

Thus (A,B) and (B,A) give the same ID. Taxon spelling, capitalization, and punctuation still matter.

Normal users and AI agents should run template-values, not calculate hashes manually.

4. Obtain ancestral trait values

Now the node identities are known. The next step is scientific inference: obtain a trait value for every internal node and the root.

Phylo3D-Trait deliberately does not choose the reconstruction model for you. The appropriate method depends on the biological question.

Possible sources include:

4.1 Reproducible continuous-trait example with fastAnc

The following R example starts from the same two initial files, estimates ancestral states, and converts R’s temporary node numbers to the same stable clade:<hash> identifiers used by Phylo3D-Trait:

library(ape)
library(phytools)
library(digest)

tree <- read.tree("tree.nwk")
tips <- read.csv("tip_traits.csv", stringsAsFactors = FALSE)

x <- setNames(tips$trait, tips$node_id)
stopifnot(setequal(names(x), tree$tip.label))

anc <- fastAnc(tree, x)

stable_id <- function(node) {
  descendants <- phytools::getDescendants(tree, node)
  tip_ids <- descendants[descendants <= Ntip(tree)]
  tip_names <- sort(unique(trimws(tree$tip.label[tip_ids])))
  key <- paste(tip_names, collapse = ",")
  paste0("clade:", substr(digest(key, algo = "sha256", serialize = FALSE), 1, 12))
}

ancestral_traits <- data.frame(
  node_id = vapply(as.integer(names(anc)), stable_id, character(1)),
  trait = as.numeric(anc)
)

write.csv(ancestral_traits, "ancestral_traits.csv", row.names = FALSE)

This produces a simple table:

node_id,trait
clade:b17c8419f544,...
clade:6a5756530335,...
clade:17f5f129f4c7,...

fastAnc is an example, not a requirement. Do not use it automatically when the biology calls for a different ancestral reconstruction.

5. Assemble the final node_values.csv

At this point you have:

tip_traits.csv          # observed terminal values
ancestral_traits.csv    # reconstructed internal/root values
node_values_template.csv

Merge the two trait sources onto the generated template:

import pandas as pd

template = pd.read_csv("node_values_template.csv")
tips = pd.read_csv("tip_traits.csv")
ancestors = pd.read_csv("ancestral_traits.csv")

values = pd.concat([tips, ancestors], ignore_index=True)

final = (
    template.drop(columns=["trait"])
    .merge(values, on="node_id", how="left", validate="one_to_one")
)

if final["trait"].isna().any():
    missing = final.loc[final["trait"].isna(), "node_id"].tolist()
    raise ValueError(f"Missing trait values: {missing}")

final.to_csv("node_values.csv", index=False)

The final file now contains a numeric trait for every tip, every internal node, and the root. This—not the original tip-only table—is the trait file passed to phylo3d-trait plot.

6. Run Phylo3D-Trait

Recommended Four-Layer render:

phylo3d-trait plot \
  --tree tree.nwk \
  --values node_values.csv \
  --output tree3d.html \
  --renderer four-layer \
  --opacity 0.85 \
  --curtain-color-mode branch \
  --centerline-color trait

A successful run ends with:

Successfully generated 3D phylogenetic visualization: tree3d.html

Open tree3d.html in a modern browser.

The minimum plotting command is:

phylo3d-trait plot \
  --tree tree.nwk \
  --values node_values.csv \
  --output tree3d.html

The default renderer is currently plotly; explicitly select --renderer four-layer for the publication-oriented WebGL2 renderer.

7. Visual Portfolio: six ways to render the same data

The Beauty Portfolio is a synthetic 12-taxon dataset created specifically for learning display controls. Every panel below uses the same tree and the same raw node values. Only presentation parameters change.

This is the safest way to understand what a display option does: change one visual decision at a time while holding the data fixed.

7.1 Full trait scale from 0 to 10

Use a zero baseline and leave the raw trait geometry unchanged. The portfolio values span exactly 4.0–10.0. With a zero curtain baseline, the visible Y axis therefore runs from 0 to 10.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_01_0_to_10.html \
  --renderer four-layer \
  --baseline-y 0 \
  --opacity 0.85 \
  --curtain-color-mode branch \
  --centerline-color trait \
  --title "Beauty Portfolio — Baseline 0 to 10"

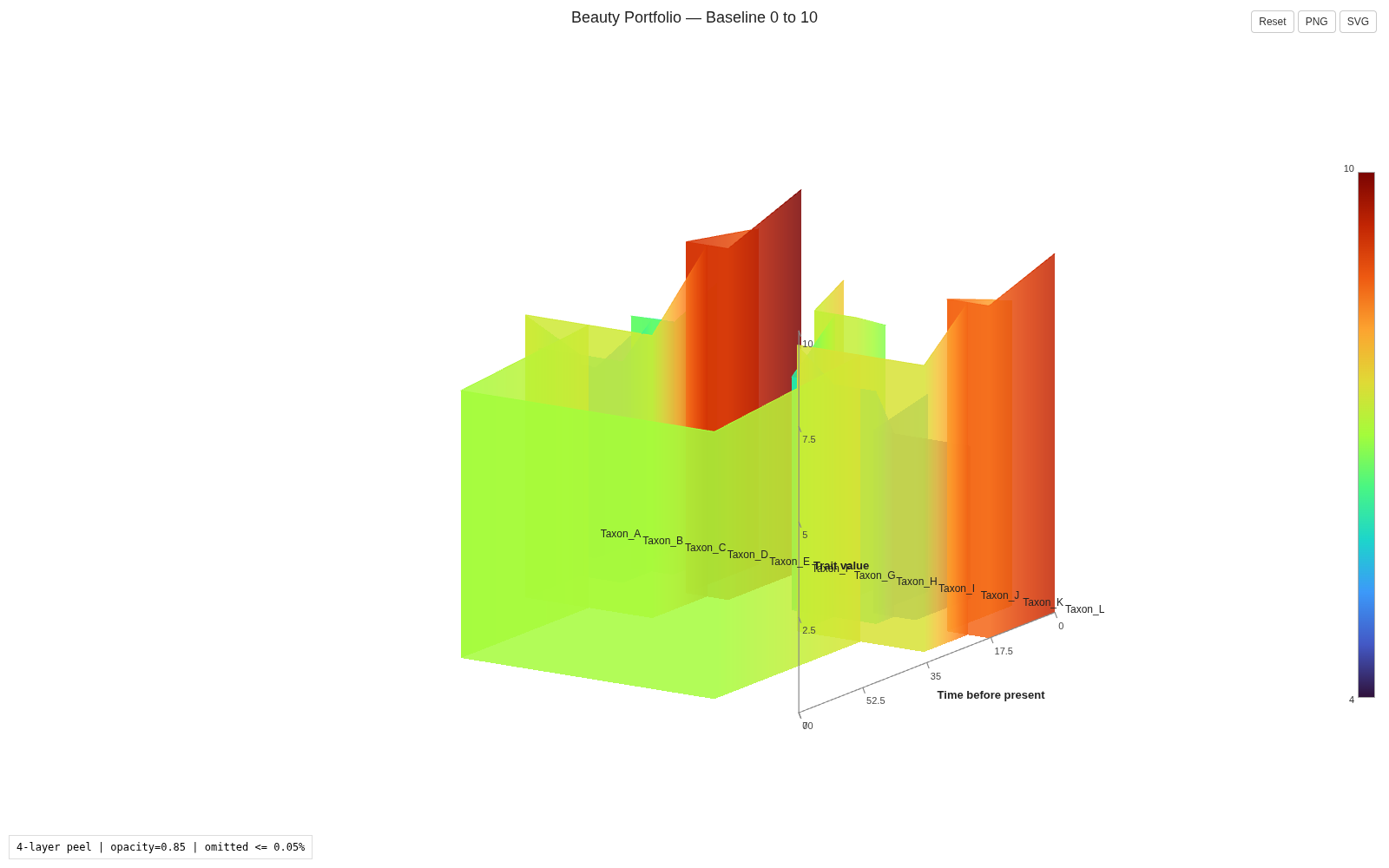

Beauty Portfolio: zero baseline, approximately 0 to 10

What changes: only the curtain baseline is forced to Y = 0. Raw trait values, colors, topology, and time remain unchanged.

7.2 Start the scientific trait axis at 4

For traits that never approach zero, subtract a display offset while keeping the scientific labels and hover values in the original scale.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_02_offset4.html \
  --renderer four-layer \
  --trait-display-offset 4 \
  --baseline-y 0 \
  --opacity 0.85 \
  --curtain-color-mode branch \
  --centerline-color trait \
  --title "Beauty Portfolio — Trait Axis Starts at 4"

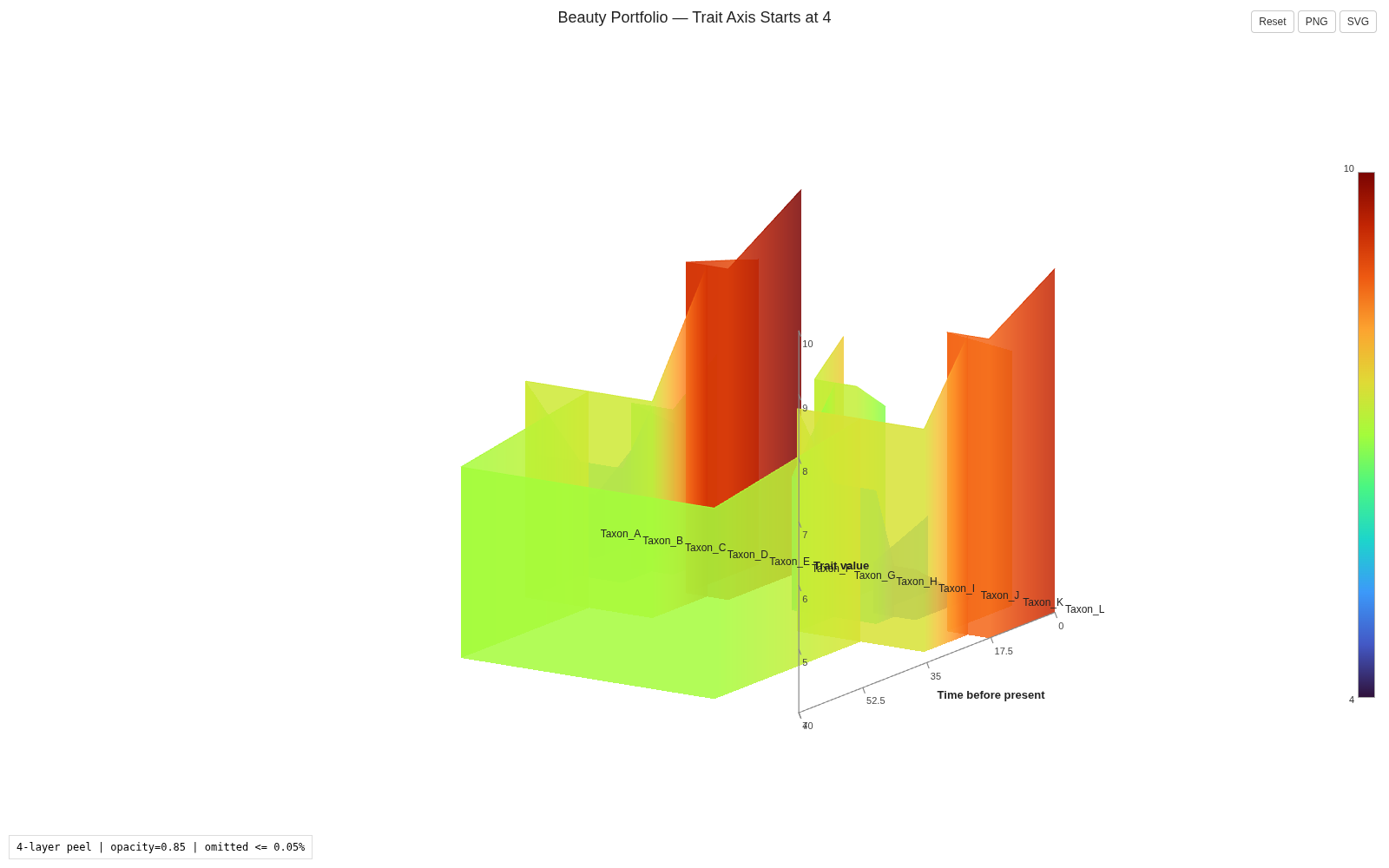

Beauty Portfolio: raw trait 4 mapped to visual baseline 0

The geometry uses:

Y_display = trait_raw - 4

but the Y-axis ticks and hover cards still report the raw scientific values. Thus the baseline is visually Y = 0 while its scientific label is 4.

7.3 Reverse the vertical trait direction

A descending display can be useful when the biological interpretation is easier to read with larger raw values lower in the scene. This is a geometry transform, not a color reversal.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_03_reversed_height.html \
  --renderer four-layer \
  --trait-display-range 10 4 \
  --baseline-y 4 \
  --opacity 0.85 \
  --curtain-color-mode branch \
  --centerline-color trait \
  --title "Beauty Portfolio — Reversed Trait Height"

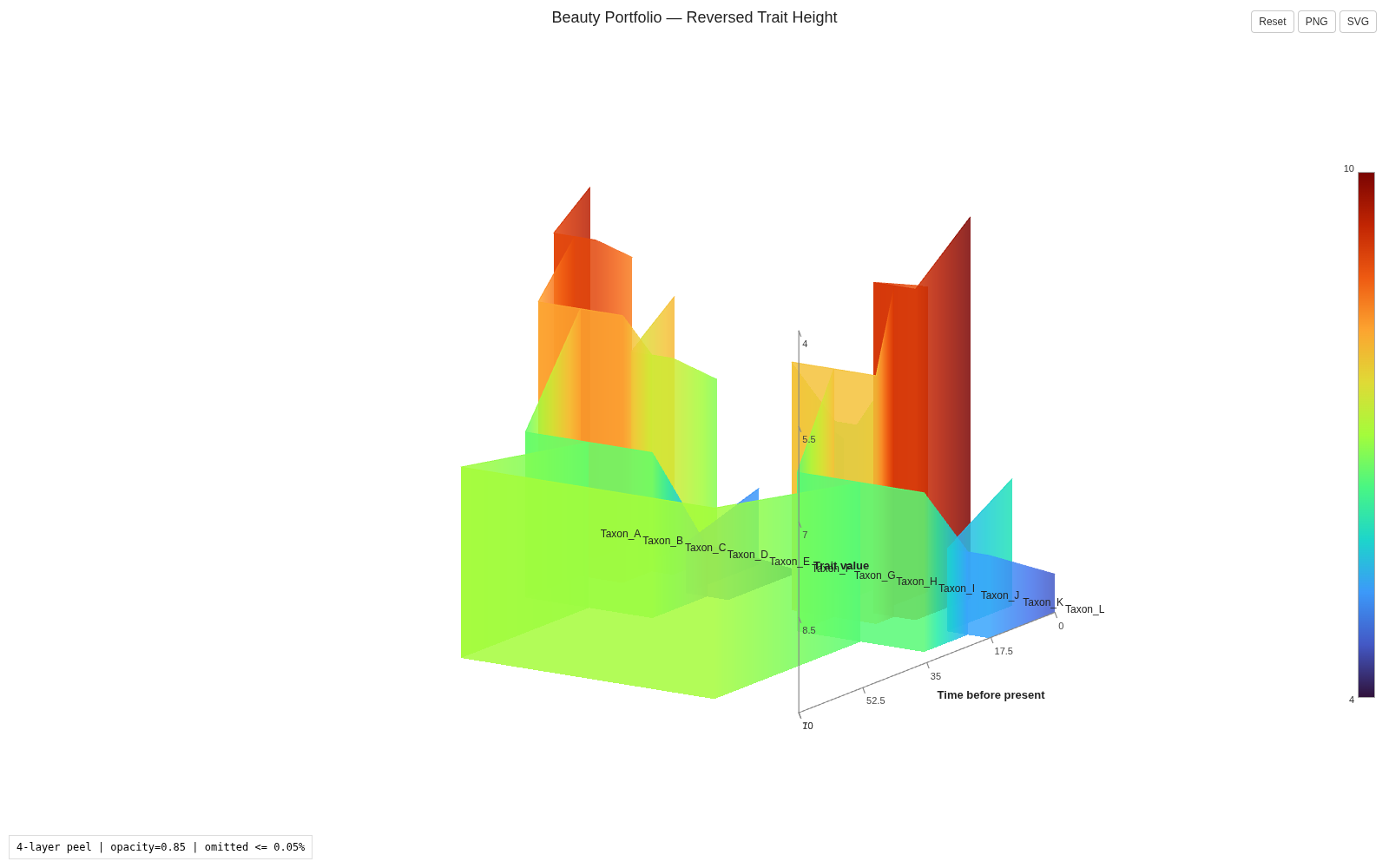

Beauty Portfolio: reversed trait-height direction

Here the raw minimum maps to the top of the display range and the raw maximum maps to the bottom. Raw values remain available in axis labels and hover metadata.

--trait-display-range 10 4 reverses height geometry. It is different from --reverse-colorscale, which reverses only palette lookup.

7.4 Fully opaque curtains

Set --opacity 1.0 for completely opaque curtain surfaces.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_04_opaque.html \
  --renderer four-layer \
  --trait-display-offset 4 \
  --baseline-y 0 \
  --opacity 1.0 \
  --curtain-color-mode branch \
  --centerline-color trait \
  --title "Beauty Portfolio — 100% Opaque"

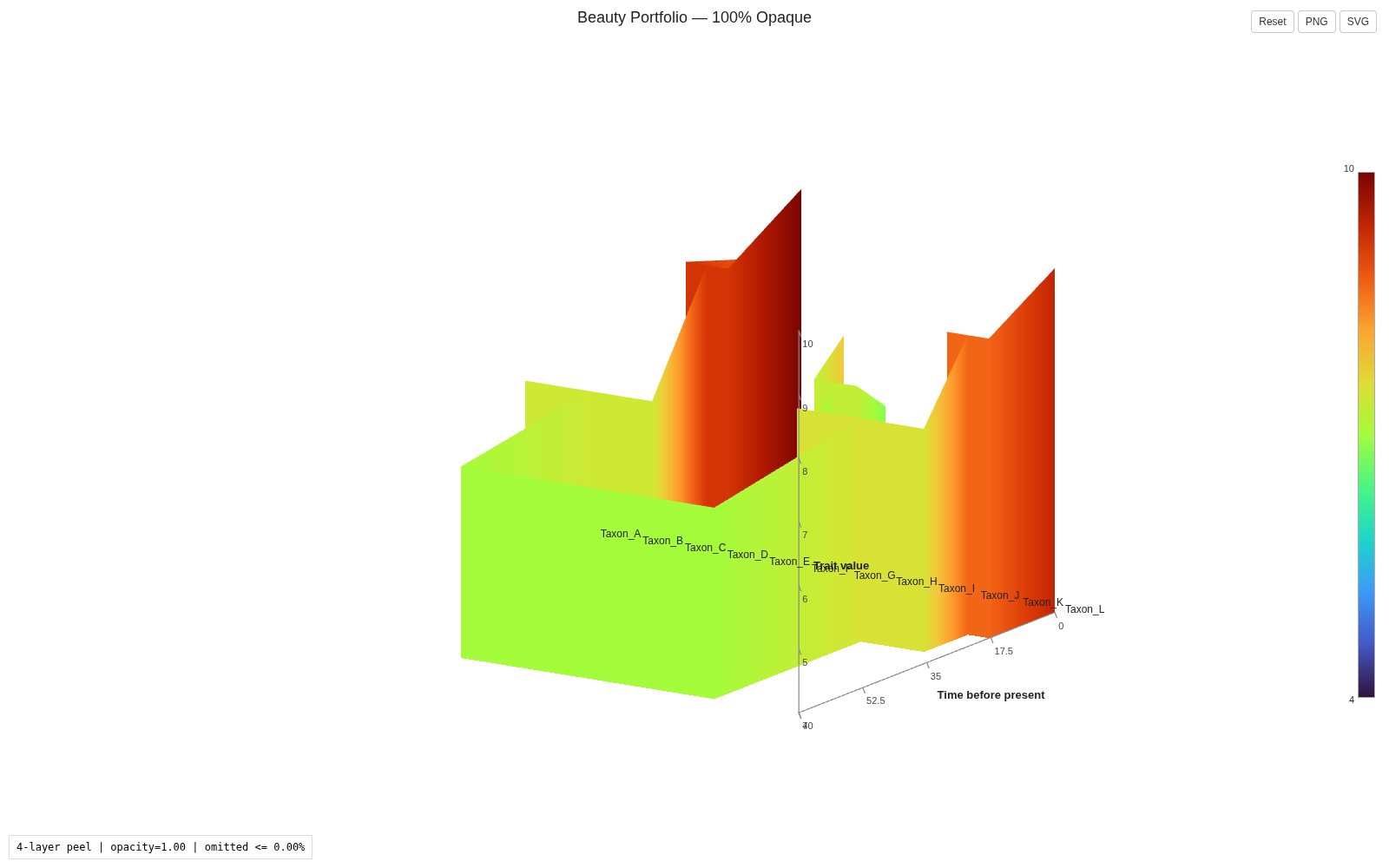

Beauty Portfolio: 100 percent opacity

Opaque surfaces emphasize the front-most geometry but can hide deeper branches.

7.5 80% opacity / 20% transparency

Set --opacity 0.8 to retain 80% opacity while allowing deeper lineages to remain visible through the curtains.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_05_opacity80.html \
  --renderer four-layer \
  --trait-display-offset 4 \
  --baseline-y 0 \
  --opacity 0.8 \
  --curtain-color-mode branch \
  --centerline-color trait \
  --title "Beauty Portfolio — 80% Opacity"

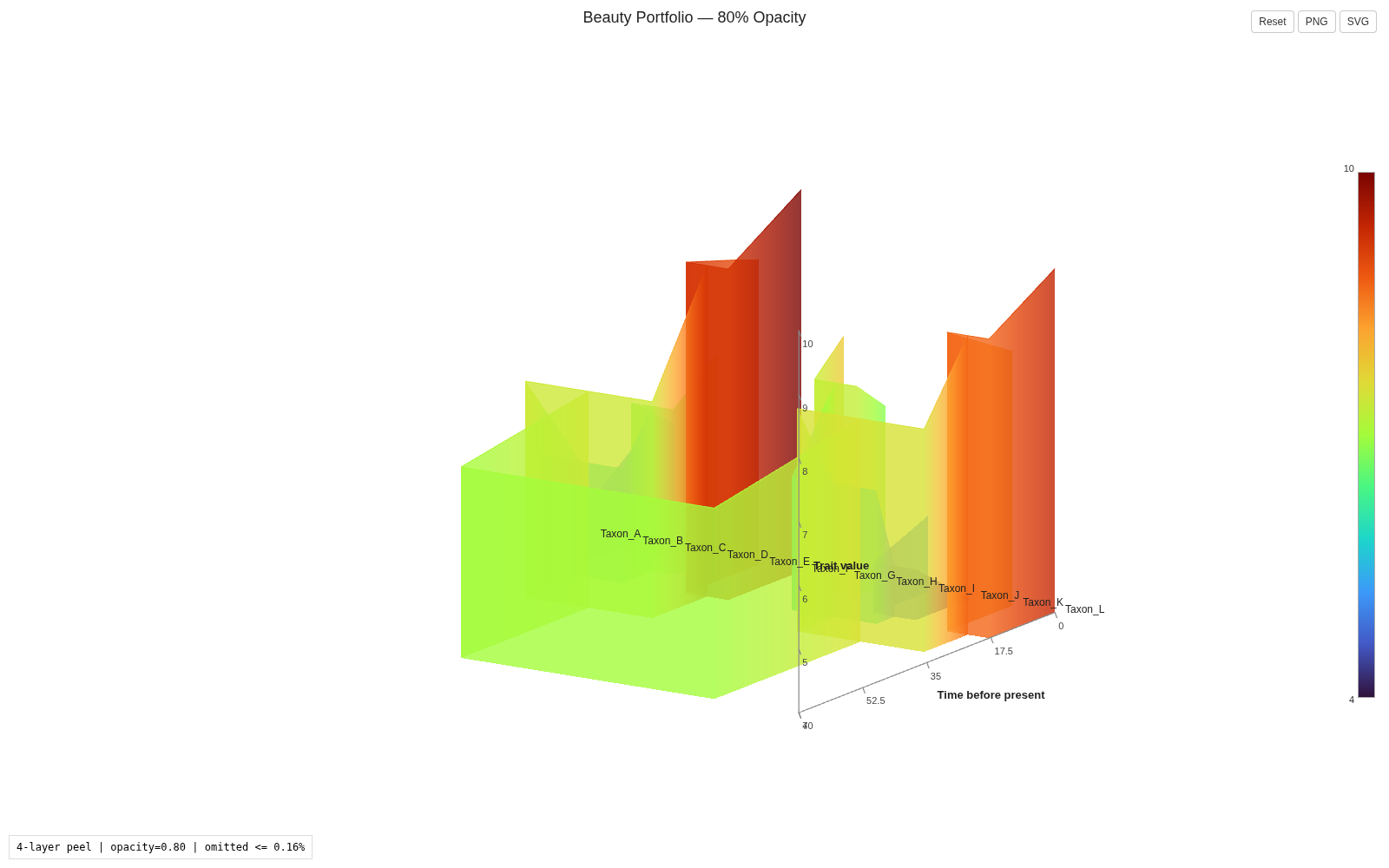

Beauty Portfolio: 80 percent opacity

This is the same geometry as 7.4. Only opacity changes, so the difference directly demonstrates the Four-Layer transparency renderer.

7.6 Use the alternative curtain-coloring mode

The previous portfolio panels use --curtain-color-mode branch: each curtain column inherits the local branch trait color vertically. The alternative height mode colors vertices according to their Y position and therefore creates a vertical gradient.

phylo3d-trait plot \
  --tree examples/beauty_portfolio/tree.nwk \
  --values examples/beauty_portfolio/node_values.csv \
  --output beauty_06_height_color.html \
  --renderer four-layer \
  --trait-display-offset 4 \
  --baseline-y 0 \
  --opacity 0.8 \
  --curtain-color-mode height \
  --centerline-color trait \
  --title "Beauty Portfolio — Height-based Curtain Color"

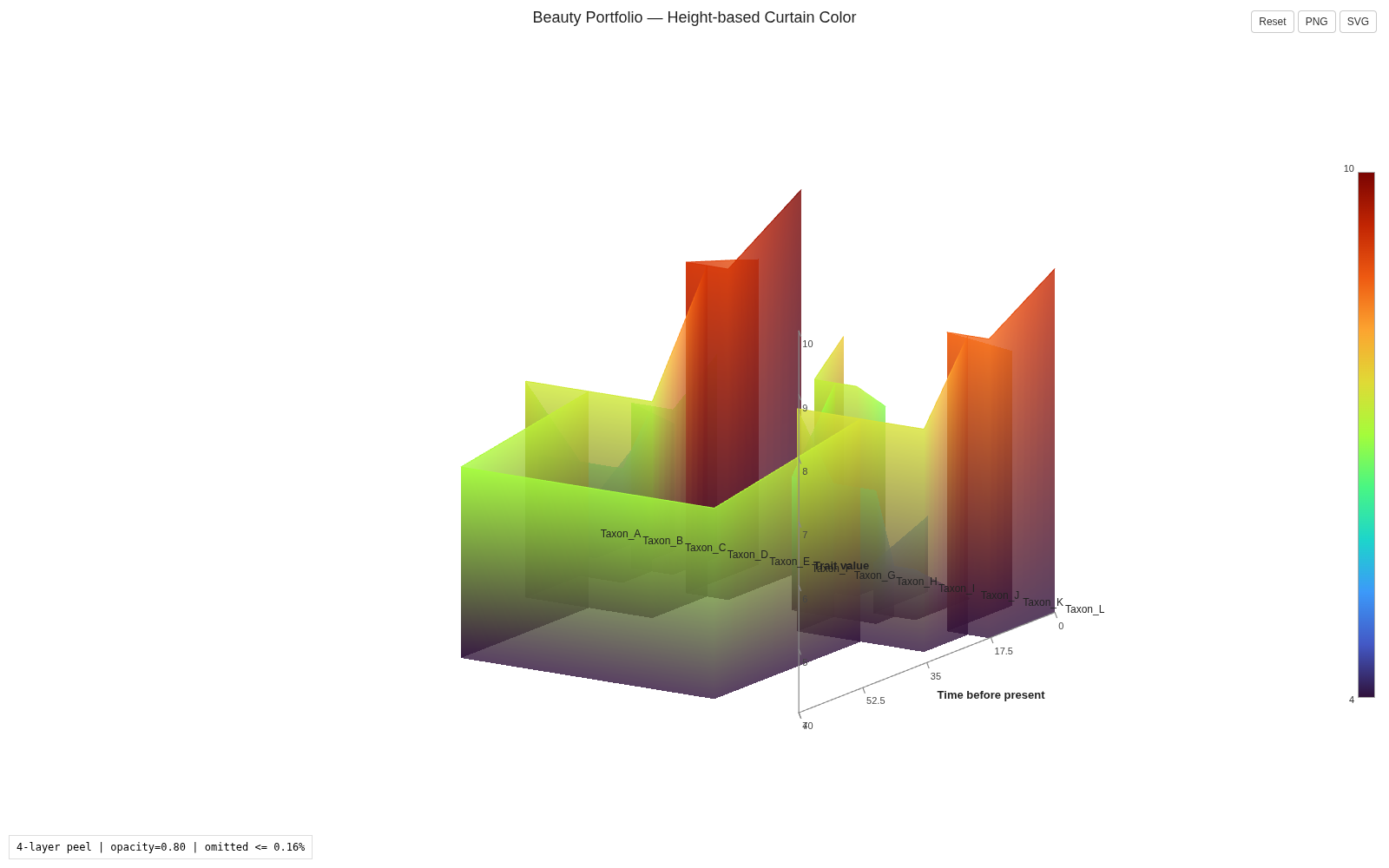

Beauty Portfolio: height-based curtain coloring

Use the modes according to what you want the curtain to communicate:

branch  -> color follows the local branch trait and is projected vertically
height  -> color follows vertical Y position and forms a gradient

All six panels use identical node values. Therefore differences among the figures are presentation effects, not biological differences.

8. Real-data example: Eulipotyphla Hb buffering evolution

The repository includes a 38-species Eulipotyphla dataset under examples/eulipotyphla/.

Eulipotyphla renderer preview

Renderer preview from the validated Eulipotyphla development artifact. This figure demonstrates the scale, topology, transparency, labels, and overall visual appearance of a real-data analysis. It is not presented as the final sequence-based ancestral Hb4 reconstruction described below; the current scientific workflow requires sequence-derived ancestral HBA_T1/HBB_T1 values before a final biological figure is released.

The public example contains:

examples/eulipotyphla/
├── tree_eulipotyphla.nwk
├── tip_traits.csv
└── README.md

These are the starting data, not a pre-filled final node table.

8.1 Generate all 37 ancestral/root IDs

phylo3d-trait template-values \
  --tree examples/eulipotyphla/tree_eulipotyphla.nwk \
  --output examples/eulipotyphla/node_values_template.csv

Validation targets:

38 tips
37 internal/root nodes
75 total nodes
root = clade:6747b5f19c9e

8.2 Obtain ancestral Hb4 values

For this biological analysis, do not use the historical Brownian/fastAnc internal-node values as a fallback.

The intended scientific route is sequence-based:

dated Eulipotyphla tree
        +
IQ-TREE 2 ML ancestral HBA_T1 and HBB_T1 sequences
        |
        | same sequence-to-buffer calculation used for extant species
        v
ancestral beta_HBA_T1 and beta_HBB_T1
        |
        v
beta_Hb4 = 2 * (beta_HBA_T1 + beta_HBB_T1)
        |
        | match each ancestral sequence node to descendant-tip set
        | -> same clade:<hash> ID
        v
37 ancestral/root Hb4 values

The 38 extant values in tip_traits.csv are retained unchanged.

The historical character-based Brownian table is intentionally not included in this example because it is not the accepted ancestral Hb4 source for this analysis. The exact sequence-derived 37-node table should be committed only after those upstream values are available and verified; it must not be fabricated from the old Brownian reconstruction.

8.3 Assemble and render

Once the verified sequence-derived table is available, merge it with tip_traits.csv using Step 5 and save:

examples/eulipotyphla/node_values_sequence_based.csv

Then render:

phylo3d-trait plot \
  --tree examples/eulipotyphla/tree_eulipotyphla.nwk \
  --values examples/eulipotyphla/node_values_sequence_based.csv \
  --output eulipotyphla_Hb_3D_sequence_based.html \
  --renderer four-layer \
  --camera-preset elife \
  --trait-display-offset 4 \
  --baseline-y 0 \
  --trait-axis-scale 0.5 \
  --tip-label-offset 0.03 \
  --reverse-colorscale \
  --curtain-color-mode branch \
  --opacity 0.8

This example illustrates why the workflow separates node identity from ancestral trait inference: Phylo3D-Trait determines stable node IDs from topology, while the biological analysis determines what trait value belongs to each node.

9. Command Line Interface (CLI) Reference

The CLI is invoked via python -m phylo3d_trait.cli <command> (or phylo3d-trait <command> when installed).

Subcommand: template-values

python -m phylo3d_trait.cli template-values -h

Subcommand: plot

python -m phylo3d_trait.cli plot -h

Core Inputs & Outputs

Rendering, Transparency & Aesthetics

Trait Geometry & Aspect Ratios

Camera, Labels & Viewport

Display Toggles (Visual-Only Layer)

10. Python API Reference

Phylo3D-Trait can be integrated directly into Python pipelines and computational workflows:

from phylo3d_trait import (
    parse_tree,
    build_plot_data,
    build_figure,
    build_four_layer_html,
)
from phylo3d_trait.io import load_trait_values

# 1. Parse tree and load trait table
tree = parse_tree("path/to/tree.nwk")
traits = load_trait_values("path/to/node_values.csv")

# 2. Build 3D plot data model
plot_data = build_plot_data(
    tree_input=tree,
    trait_values=traits,
    num_segments=10,
    colorscale="Turbo",
    curtain_color_mode="branch",
    reverse_colorscale=True,
)

# 3A. Render with modern Four-Layer WebGL2 engine (OIT + Adaptive Axes)
html_content = build_four_layer_html(
    plot_data=plot_data,
    opacity=0.85,
    camera_preset="elife",
    centerline_color="trait",
)
with open("tree3d_four_layer.html", "w", encoding="utf-8") as f:
    f.write(html_content)

# 3B. Or render with classic Plotly engine
fig = build_figure(
    plot_data=plot_data,
    camera_preset="elife",
    background="white",
)
fig.write_html("tree3d_plotly.html", include_plotlyjs="cdn")

AI execution contract

An AI agent should reason about files by provenance, not by filename alone:

STARTING INPUTS:
- exact Newick/Nexus tree
- observed tip-only trait table

DERIVED:
- node_values_template.csv from template-values
- ancestral_traits.csv from an explicit external scientific method
- node_values.csv from merging observed tips + reconstructed ancestors

PROCEDURE:
1. Inspect the exact tree and determine what branch lengths mean.
2. Verify tip trait names match tree tip labels exactly.
3. Run template-values; never invent clade hashes.
4. Obtain ancestral trait values using the user-specified scientific method.
5. Map ancestors to the stable IDs generated from the exact tree.
6. Merge tip and ancestral values onto the template.
7. Fail if any required node lacks a numeric trait.
8. Run plot and report the exact output path.

MUST NOT:
- treat the final node_values.csv as an unexplained starting file;
- invent or hand-edit clade hashes;
- silently choose an ASR model;
- use historical/fallback ancestral values when the user specifies another method;
- interpret substitution branch lengths as Ma;
- modify package source merely because a new dataset is supplied.

Examples in this repository

These links open the corresponding directories in the GitHub repository. The GitHub Pages site is built from docs/ only, so repository-level examples/ directories are not published as Pages routes.

For deeper implementation notes and agent guardrails, see the User & AI Agent Guide.

This site is open source. Improve this page.
